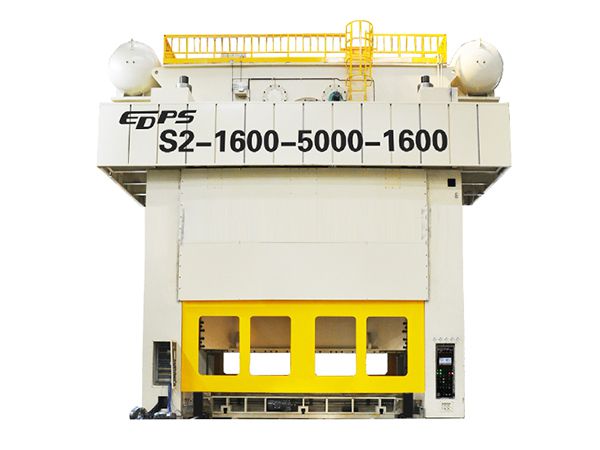

Features
● The precision metal stamping press comes with low inertia pneumatic clutch and brake unit which is controlled by superior quality double safety valve.
● Highly rigid frame with low angular deflection
● The slide is designed with overload protection, ensuring high safety during running.
● Die height can be easily adjustable on the touch screen to meet different metal stamping needs.
● A combined lubrication method is used in the metal stamping process: oil circulation lubrication and grease lubrication. This greatly reduces friction through lubricity in the metal stamping presses.
● Adopts dual loop PLC controller
● Finite Element Analysis is performed on the key components of the stamping press.
● The metal stamping equipment can be optionally equipped with moving bolster, air cushion, quick die change system, photoelectric protection, etc.
● Stamping operations are suitable for both short or long production runs.
Parameters
| Item | Unit | S2-1600 | |
| Nominal press force | kN | 16000 | |
| Nominal stroke | mm | 13 | |
| Slide stroke | mm | 600 | |
| Slide strokes per minute | s.p.m | 10-16 | |
| Max. die height | mm | 1100 | |
| Die height adjustment | mm | 600 | |
| Distance between posts | mm | 4580 | |
| Bolster size | F-B | mm | 1800 |
| L-R | mm | 4500 | |
| Thickness | mm | 340 | |
| Slide | F-B | mm | 1800 |
| L-R | mm | 4500 | |
| Press force | kN | 1500 | |
| Air cushion | Qty. | pc | Single top crown |
| Stroke | mm | 250 | |
| Die knockout (optional) | Stroke | mm | 150 |
| Moving bolster (optional) | Forwards | ||
| Main motor power | kW | 220 | |
| Overall dimensions (ca.) | F-B | mm | 8450 |
| L-R | mm | 6320 | |
| Height above ground | mm | 11000 | |
Standard configurations
- Hydraulic overload protection system
- Automatic lubricating device
- Electric slide adjustment device
- Electric die height indicator
- Slide and die balancing device
- Electronic cam controller
- Static SPM display function
- Air blowing device
- Over run protection device
- Motor with frequency converter
- Misfeed sensor
- Main motor reversing device
- Stroke counter
- Preset counter
- Power socket
- Independent control box
- T type moving bolster
- Base plate and bolts
- Maintenance tool box
- Operation manual
Optional configuration
- Pneumatic die cushion
- Photoelectric safety device
- Die knockout device
- Die light
- BDC (bottom dead center) Detector
- Foot switch
- Flywheel brake
- Safety block bolt
- Moving bolster
- Quick die change system
- Automatic feeding system
- Anti-vibration mounts
