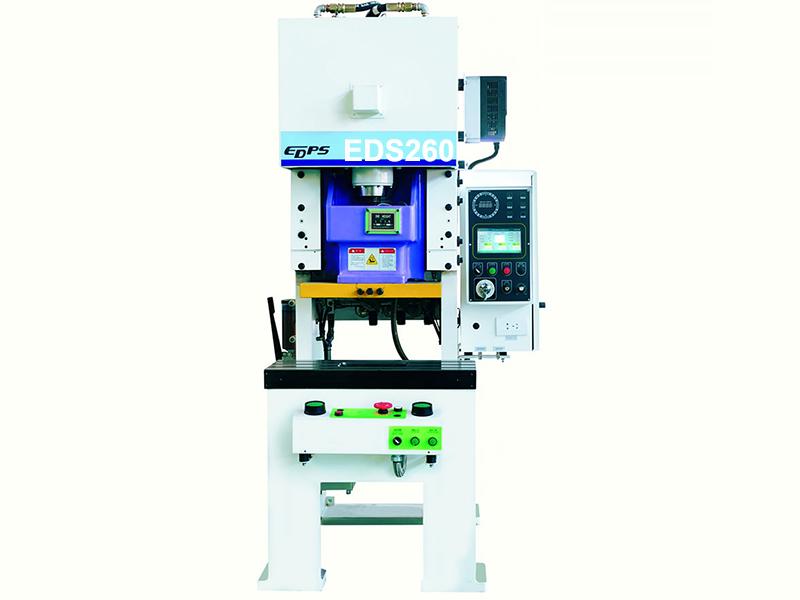

Product description
260 Ton presses precision of press machine reaches GB (JIS) 1class. And the machine is widely used to shear, shape and straighten metal in the fields of vehicle, watches and clocks, home appliance, stationery, hardware and computer.
Features
● High precision
● Convenient operation
● Rigid frame
Parameters
| Name | Unit | EDS-60 | |
| V | H | ||
| Capacity | ton | 60 | |
| Rated tonnage point | mm | 6 | 3 |
| Speed changing | s.p.m | 42-85 | 75-150 |
| Stable speed | s.p.m | 70 | |
| Stroke | mm | 120 | 30 |
| Max. die height | mm | 300 | 315 |
| Slide adjustment | mm | 70 | |
| Slide area | mm | 500x400 | |
| Bolster area | mm | 900x550x130 | |
| Shank hole | mm | Æ50 | |
| Main motor | kW.p | 5.5x4 | |
| Air pressure | kg/cm2 | 6 | |
| Press precision | GB(JIS), Class 1 | ||
| Die cushion capacity | ton | 2.3 | |
| Stroke length of die cushion | mm | 50 | |
| Effective area of die cushion | mm2 | 300x230 | |
Standard configuration
- Inverter
- Hydraulic overload protector
- Electrical slide adjusting device
- Touch screen(preset, count)
- Counter balancer of slide and die
- Miss-feed detection device
- Angel indicator for crank
- Counter
- Air outlet
- Anti-repeat safety device
Optional configuration
- Wet clutch
- Electrical lubrication device
- Pneumatic die cushion
- Foot switch
- Quick die change device (die lifter, die clamp, die roller)
- Knockout Device
- Shockproof device
- Photoelectric safety device
- Feeder (air, machine, NC)
- Die light device
