Product description

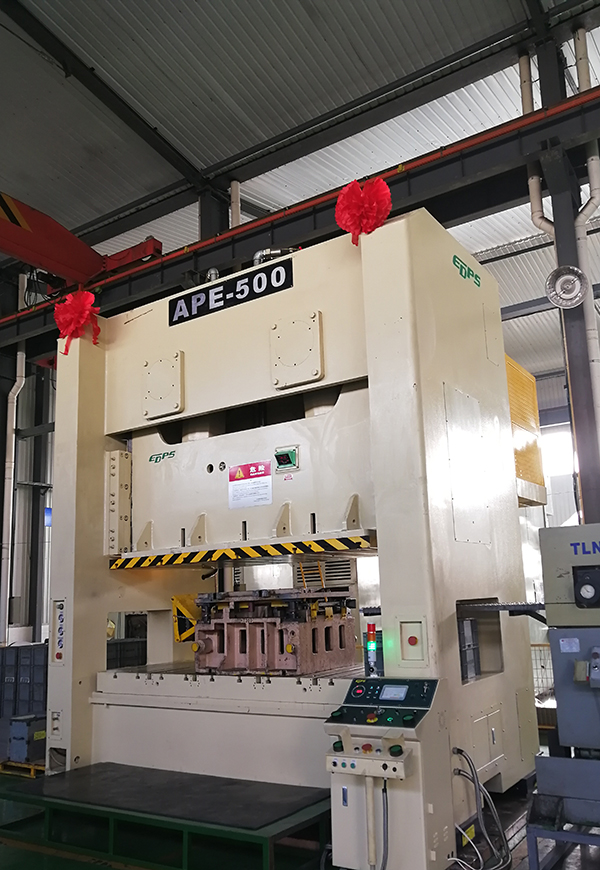

APE Series 500 Ton precision metal stamping press has a high precision of 0.1mm, and it features easy operation and reliable performance. Therefore, it is quite suitable in cutting, punching, bending and other machining for diverse metal plates. These metal plates could be used to produce motor casing, automobile parts, home appliance, computer cases, recording machine, power supply unit's bottom mounts and etc.

500 Ton H frame precision metal stamping press possesses wide bolster plate and wide opening, which contributes both single die stamping and multi-die stamping. Meanwhile, these designs also well support the operation of 2D or 3D automatic die changing device and robotic arms with servo motors. In this way, multi-functional feeding system will be achieved.

Parameters

Product features

● High stiffness for its frame: Quality welded steel plates are adopted as the raw material of 500 - ton stamping press's frame. These plates undergo stress relieving, which allows for a high and stable presses precision.

● Optimal design: 500 Ton precision metal stamping press adopts high alloy steels, double cranks, wide ram and bolster, and a well-designed load bearing structure. The load bearing structure is designed as follows: Connecting rods are installed between double cranks and these rods are used to bear the load from two wide operation centers - ram and bolster.

● In order to ensure stable operation, we adopt two counterbalancing slides and balancing device.

● Allowable tolerance for this press machine is 0.1mm, which enables safe, convenient and reliable operation.

● After hard anodizing, grinding and other machining, our crankshaft, gears, connecting rods and other components all possess high performance in its physical and chemical properties.

● Since 500-ton APE precision metal stamping press is equipped with clutch, brake, double solenoid valve (controlling clutch by cutting off or putting through the air supply), overload protector, the safe and precise operation of stamping press's slides is guaranteed.

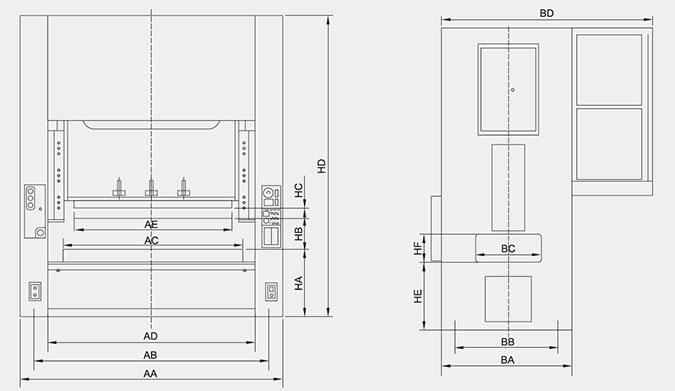

Overall dimension

Specification

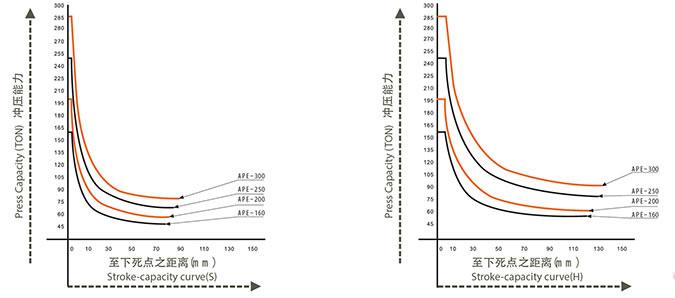

Capacity curve chart

Standard configuration

• Dry clutch brake
• Standard operating system of Yiduan
• Choice/cutting/inch/safe journey/continuation of operating mode
• Oil pressure overload protection device
• Over-run safety device
• Duplex magnetic valve
• Misfeed detection consent
• Electric slider adjusting device
• Digital molding-height indicator (unit: 0.1 mm)
• Auto grease pump device
• Accumulative counter (6 digits)
• Pre-determined counter (6 digits)
• Maintenance counter (6 digits)
• Life counter (6 digits)
• Electronic rotary cam switch (6 connections)
• Air-blast device 1/2" primary circuit
• Air source connector 1/2" secondary circuit
• Error inspection socket
• Power socket (only applied to single-phase 110V power)

Optional configuration

• Wet clutch brake
• Die cushion device
• Vs variable-speed motor
• Touch-screen device
• Photo-electric safety device
• Upper slider feeding device
• Main motor inversion device
• Foot switch
• Safety dog and safety latch
• T-type two-hand button operating floor
• Inspection variable-connection magnetic valve
• Anti-vibration mechanical foot
• Rapid tooling exchange
• Upper die clamper
• Lower die clamper
• Die lifter
• Mold-shift arm
• Basic bolt and soleplate
• Automatic feeder device
• Three-in-one NC straightening feeder
• NC Roll feeder
• Two-in-one feeder and straightening machine
• Leveler
