Product description

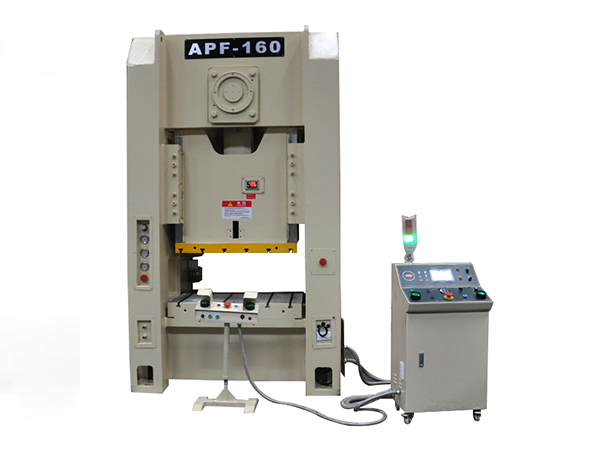

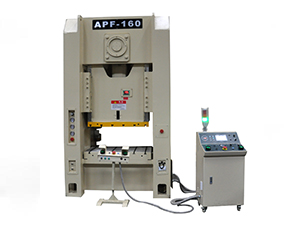

The presses precision of APF Series 160 Ton stamping presses arrives to class 1- JIS (Japanese industrial standards), which is suitable for progressive die stamping in high precision.
Product features
● High stiffness for its frame: Tempering and vibratory stress relief are carried out for quality welded steel plates, which are the raw materials of APF precision stamping press's frame.
● High standard machining: Components of the stamping press, such as gears, crankshaft, all underwent hard chrome plating, azotizing and grinding.
● High-end configuration: APF precision metal stamping press adopts quality controller, drive parts, electromagnetic clutch, pneumatic component, beatings and etc.
● It has passed the international standards for stamping technologies and equipment.
● Adoption of large capacity memory module and design software
● Multi-axial adjustable-speed drive
Parameters
| Name | Unit | APF-160 | |
| Model | V | H | |
| Capacity | ton | 160 | |
| Rated tonnage point | mm | 6 | 3 |
| Stroke | mm | 200 | 90 |
| Speed changing | s.p.m | 20-50 | 40-70 |
| Stable speed | s.p.m | 35 | |
| Die height | mm | 460 | 510 |
| Slide adjustment | mm | 100 | |
| Slide area | mm | 1100x600x90 | |
| Bolster area | mm | 1200x800x140 | |
| Side opening | mm | 850x600 | |
| Main motor | kwx p | 15x4 | |
| Slide adjusting motor | kwx p | 0.75x4 | |
| Air pressure | kg/cm2 | 6 | 6 |
| Presses precision | GB/T23280-2009 [ JIS class 1 ] | ||
Standard configuration
- Oil pressure overload protection device
- Electric slide adjusting device
- Digital die-height indicator
- Slides and die counterbalancing device
- Rotary cam switch
- Crankshaft position sensor
- Circulation lubrication device
- Electromagnetic stroke counter
- Die over-run protection device
- PLC (Programmable logic controller)
- Movable T-type operating floor
- Air supply connector
- Free standing electrical cabinet
- Maintenance tools and tool kit
Optional configuration
- Die cushion
- Upper slider feeding device
- Lightening device for dies
- Main motor inversion device
- Photo-electric safety device
- Safety slot and ball lock pins
- Preset counter (6-digit)
- Load bearing detection device
- Misfeed detection device
- Variable-frequency drive
- Basic bolt and soleplate
- Anti-vibration device
- Safety rack and safety ladder
- Power socket
- Rapid die change device
