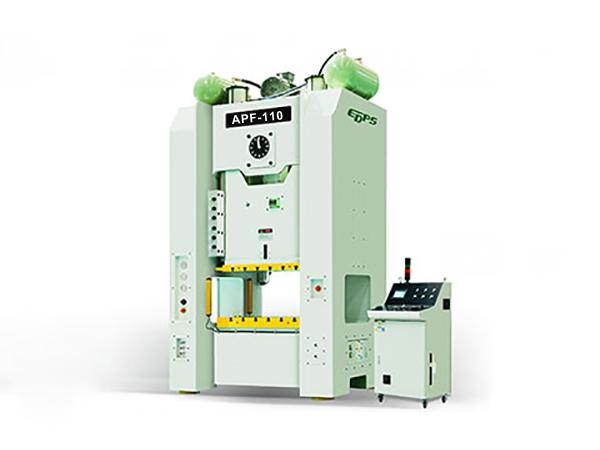

110 Ton Precision Metal Stamping Press, No. APF-110

Product description

The presses precision of APF Series 110 Ton stamping presses arrives to class 1-JIS (Japanese industrial standards), which is suitable for progressive die stamping in high precision.

Product features

● High stiffness for its frame: Tempering and vibratory stress relief are carried out for quality welded steel plates, which are the raw materials of APF precision stamping press's frame.

● High standard machining: Components of the stamping press, such as gears, crankshaft, all underwent hard chrome plating, azotizing and grinding.

● High-end configuration: APF precision metal stamping press adopts quality controller, drive parts, electromagnetic clutch, pneumatic component, beatings and etc.

● It has passed the international standards for stamping technologies and equipment.

● Adoption of large capacity memory module and design software

● Multi-axial adjustable-speed drive

Parameters

Name Unit APF-110
Model
V H
Capacity ton 110
Rated tonnage point mm 6 3
Stroke mm 180 80
Speed changing s.p.m 30-60 60-90
Stable speed s.p.m 50
Die height mm 360 410
Slide adjustment mm 80
Slide area mm 1000x550x70
Bolster area mm 1100x600x110
Side opening mm 700x500
Main motor kwx p 11x4
Slide adjusting motor kwx p 0.4x4
Air pressure kg/cm2 6 6
Presses precision
GB/T23280-2009 [ JIS Class 1 ]

Standard configuration

  • Oil pressure overload protection device
  • Electric slide adjusting device
  • Digital die-height indicator
  • Slides and die counterbalancing device
  • Rotary cam switch
  • Crankshaft position sensor
  • Circulation lubrication device
  • Electromagnetic stroke counter
  • Die over-run protection device
  • PLC (Programmable logic controller)
  • Movable T-type operating floor
  • Air supply connector
  • Free standing electrical cabinet
  • Maintenance tools and tool kit

Optional configuration

  • Die cushion
  • Upper slider feeding device
  • Lightening device for dies
  • Main motor inversion device
  • Photo-electric safety device
  • Safety slot and ball lock pins
  • Preset counter (6-digit)
  • Load bearing detection device
  • Misfeed detection device
  • Variable-frequency drive
  • Basic bolt and soleplate
  • Anti-vibration device
  • Safety rack and safety ladder
  • Power socket
  • Rapid die change device
