Maximum performance, utmost precision and unsurpassed reliability

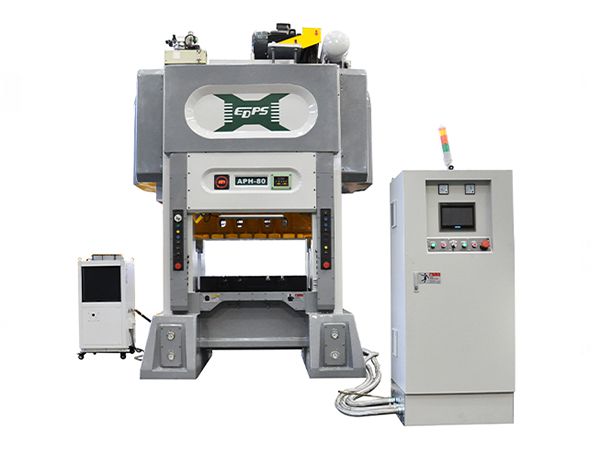

Designed with high-alloy steel frame, the gantry type precision metal stamping press with 6 posts features high stability and reliability. After eliminating the internal stress, the precision is significantly improved, resulting in extremely low noise and vibration during metal stamping process. This is beneficial to increasing the durability of stamping dies.
Parameters
| Item | Unit | Model APH-80 |
| Capacity | ton | 80 |
| Stroke | mm | 30 |
| Strokes per minute | s.p.m | 200-700 |
| Bolster area | mm | 1100x750 |
| Bolster opening | mm | 800x150 |
| Slide area | mm | 1100x500 |
| Die height adjustment | mm | 330-380 |
| Motor for die height adjustment | kW | 0.75 |
| Feeding height | mm | 175±50 |
| Main motor | kW | 22 |
Standard configurations
- Electric die height adjustment device
- Digital die height indicator (0.01mm)
- Micro-inching function
- rocess parameters of 30 die sets stored in the computer
- Misfeed sensors
- wo way rotation in main motor control
- ydraulic clamping unit for adjusting die height
- ubricant cooling device
- taly OMPI combined clutch/brake unit
- Independent electric control box
- Tool box
- Work light
- Inverter control for main motor
Optional configuration
- Die height detector
- Hydraulic die clamping system
- Hydraulic die lifter
- High speed feeder (gear change type)
- Double head uncoiler
- Leveler (S loop control)
- Anti-vibration mounts
- F-3SC stamping controller
- Two side soundproof safety door
