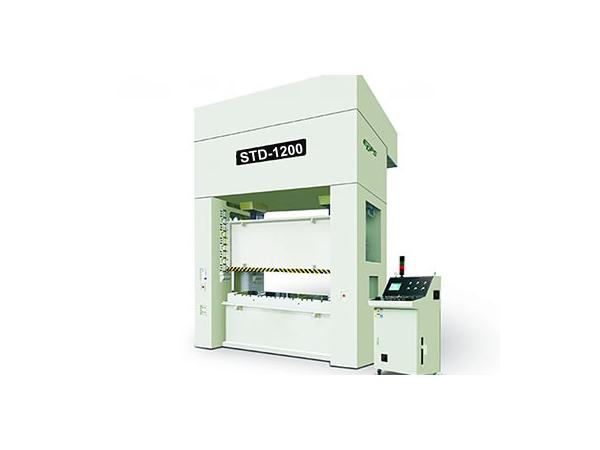

1200 Ton double crank metal stamping press can be used to stamp heavy metal with large thickness, such as parts of motorcycle and bicycle, automatic equipment of home appliances.
● The punch machine has linear motion system for slide in eight directions, ensuring the accuracy of operation.
● Hydraulic overload protection system can automatically stop the operation of punch machine when overload happens, ensuring the safety of punch machine and die. And the system is convenient to use.
● The punch machine uses PLC electrical centralized control system, meeting the operational specifications of emergency stop
● Dry pneumatic friction clutch is featured of low noise, large clutch torque, small braking angle and easy maintenance.
● Unitized straight side frame with good rigidity consists of beam, column and base. And we use 4 tensile screw rods to tighten the frame. (400~600)
|Rated tonnage point||mm||13||9|
|Die cushion capacity||Ton||80|
- Variable speed motor
- Hydraulic overload protector
- Electrical slide adjusting device
- Free standing electrical cabinet
- Movable operation floor
- Digital die height indicator (precision: 0.1MM)
- Electrical grease lubrication device
- Power socket
- Die over-run protection device
- Mis-feed detection device
- Preset counter (6 digits)
- Air supply connector 1/2" one channel
- Air supply connector 1/2" two channels
- Die cushion
- Photoelectric safety device
- Upper slider feeding device
- Safety slot and ball lock pins
- Anti-vibration device
- Lighting device for dies
- Quick die change device
- Moveable operation floor
- Variable-frequency drive
- Automatic feeding system
