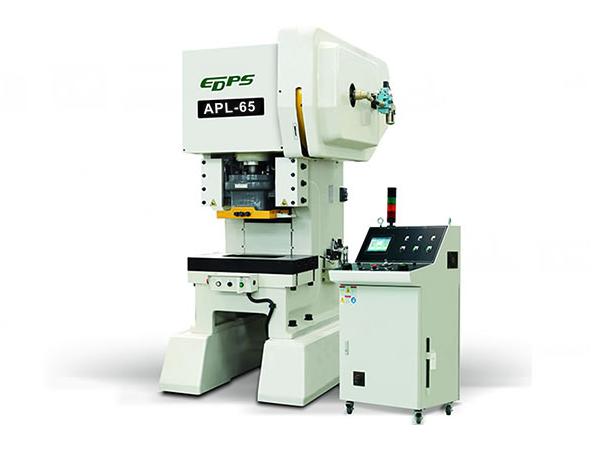

65 Ton Precision Metal Stamping Press, No. APL-65

Product description

65 Ton precision stamping press can be used to process small electronic components with high precision and large yield, such as communication components, computer components, small components of household appliances, stator, rotor and other small components.

Product features

● The punch machine uses dynamic balance system, increasing the service life of punch machine and die.

● Hydraulic slide uses sticking release device, improving reliability.

● New linkage driving device can improve the precision and stability of punch machine.

Parameters

Name APL-65
Model A B C
Capacity ton 65
Rated tonnage point mm 1.6
Stroke mm 20 30 40
Stroke per minute s,p.m 100-400 100-350 100-300
Die height mm 305 300 295
Bolster area mm 860x520x100
Slide area mm 460x370
Slide adjustment mm 50
Main motor 7.5x4P
Shank hole mm 50
Bed opening mm 480x260
lubrication device Forced circular lubrication device

Dimensions

Model A B C D E F G/g H/h I KxJ LxM O T(Wxdxs)
APL-65 2538 1358 260 530 1180 900 1555/380 1850/443 160 23x360 420x220 Φ60x90L 15x5x88

Standard configuration

  • Top stop
  • Variable speed motor
  • Hydraulic clamping device
  • Slide and die counterbalancing device
  • Die height indicator
  • Slide adjusting device
  • Microcomputer control system
  • Operation cabinet at the front of frame
  • Forced circular lubrication device
  • Crankshaft position sensor
  • Miss-feed socket: 2 sets
  • Air supply connector
  • User manual
  • Tool kit

Optional configuration

  • Anti-vibration device
  • Grease lubrication device
  • Bottom dead center sensor
  • Quick die change device
