Product description

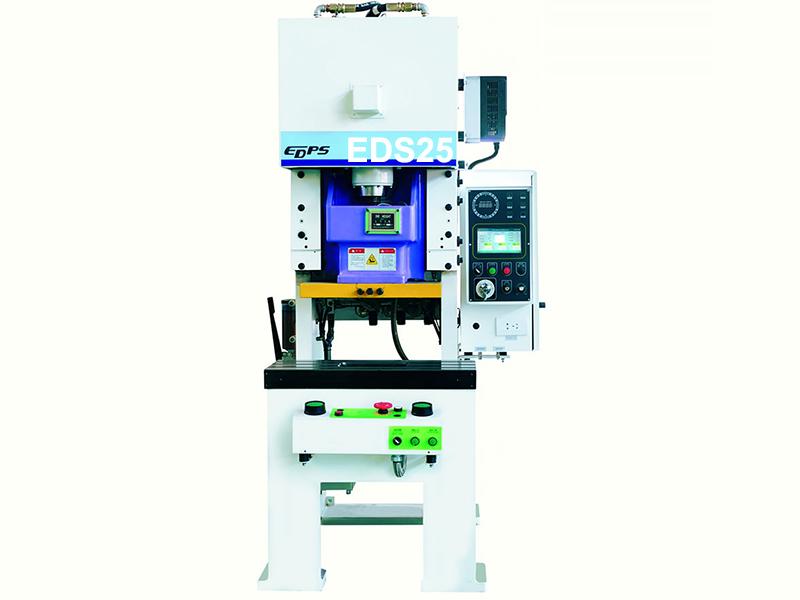

Thepresses precision of 25 Ton precision metal stamping press reaches GB (JIS) 1class. And the machine is widely used to shear, shape and straighten metal in the fields of vehicle, watches and clocks, home appliance, stationery, hardware and computer.
Features
● High precision
● Convenient operation
● Rigid frame
Parameters
| Name | Unit | EDS-25 | |
| V | H | ||
| Capacity | ton | 25 | |
| Rated tonnage point | mm | 6 | 3 |
| Strokes per minute at variable speeds | s.p.m | 75-150 | 150-250 |
| Strokes per minute at a constant speed | s.p.m | 125 | |
| Stroke | mm | 80 | 30 |
| Max. die height | mm | 200 | 250 |
| Slide adjustment | mm | 50 | |
| Slide area | mm | 300x230 | |
| Bolster area | mm | 75Ox300x70 | |
| Shank hole | mm | Æ38 | |
| Main motor | kW.p | 2.2x4 | |
| Air pressure | kg/cm2 | 6 | |
Standard configuration
- Inverter
- Hydraulic overload protector
- Electrical slide adjusting device
- Touch screen(preset, count)
- Counter balancer of slide and die
- Miss-feed detection device
- Angel indicator for crank
- Counter
- Air outlet
- Anti-repeat safety device
Optional configuration
- Wet clutch
- Electrical lubrication device
- Pneumatic die cushion
- Foot switch
- Quick die change device (die lifter, die clamp, die roller)
- Knockout Device
- Shockproof device
- Photoelectric safety device
- Feeder (air, machine, NC)
- Die light device
